Computational Fluid Dynamic analysis of an office space

Investigation of air flow, temperature and lighting levels in a building to analyse and improve conditions

Do you find your house uncomfortable? Do you suffer from low productivity? Have you ever considered that this could be due to a lack of natural light, poorly placed air-conditioners, incorrect air circulation, or extreme room temperatures?

Your Building Environment

You own a building – or you are planning to build – but you have questions. Will it be thermally comfortable, or will you feel like a polar bear in the Sahara, or a camel in the Antarctic? Will your cooling and heating energy bills give your grey hairs? Will there be enough daylight to make the house feel warm and inviting, or will it be like a dungeon, dark and dreary?

Maybe you want to know how much daylight will reach different areas inside your building. Or you want to know what the air temperatures will be at different locations because you have an elderly occupant who is very sensitive to the cold. Or you have no idea whether you will need air conditioning units, what size they should be, and where they must be situated. Maybe you want to know how well the air will circulate through the building, because you like natural ventilation. Or you want to know if it will be draughty in some locations.

The good news is that there are tools that can give you informed answers to these questions, which can help you to find cost-effective improvements. The following case study helps to illustrate an example of a project where we at Greenplan addressed a number of these questions.

Client Brief

Greenplan was requested to help a university student to investigate air flow patterns in an office in order to position pot plants in optimal locations for air filtration. Our evaluation identified stagnant and well-aerated areas, air movement patterns, temperature variation and daylight levels.

How did we do it?

Creating the Model

The approximate dimensions and orientation were used to construct a three-dimensional model of the office in DesignBuilder, a building energy modelling software package. Tables, chairs, computers and air-conditioners were placed in the model based on the actual office layout. Internal office doors were assumed to be open, while all external doors and windows were assumed to be closed. The model is shown in Figure 1.

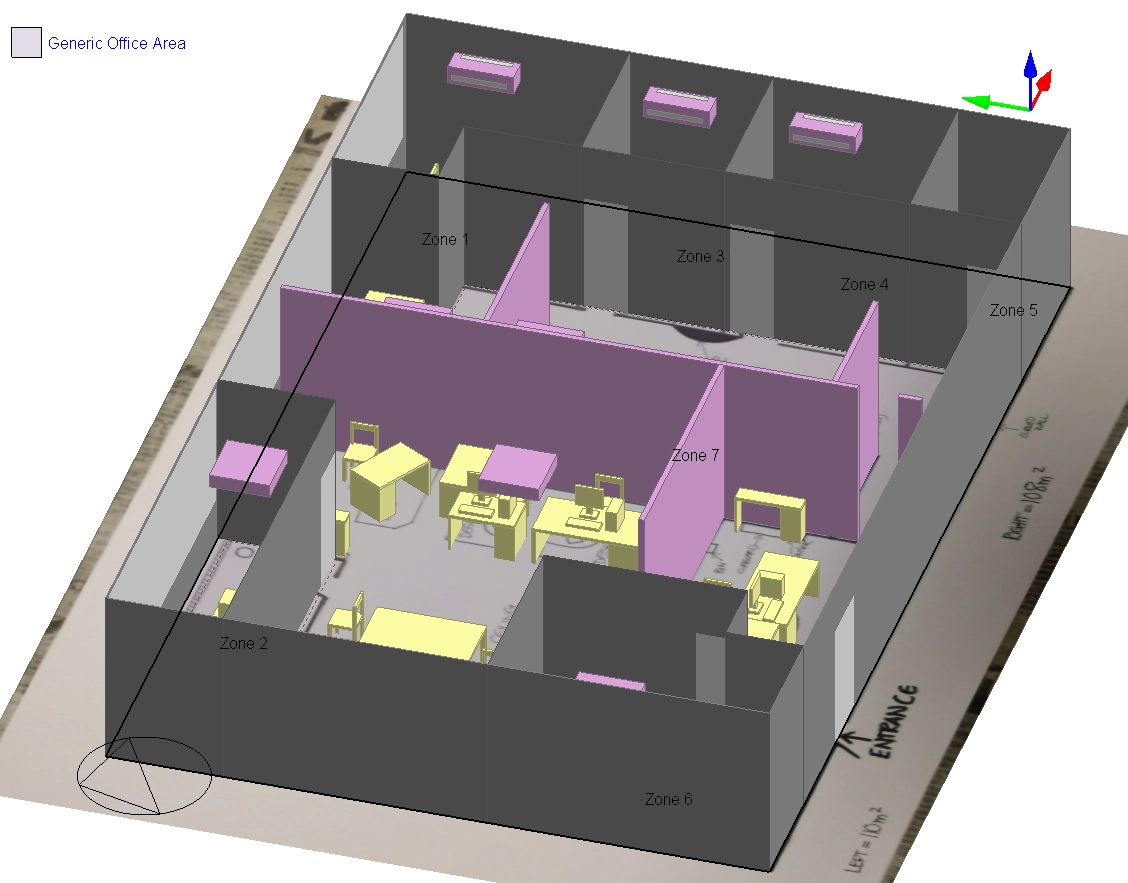

DesignBuilder model of the office space

Figure 1: View of model showing equipment and zones

Running the Simulation

The next step after creating the office model was to simulate its performance with real weather data. DesignBuilder allows for a number of different parameters to be calculated (temperature, air flow speed, daylight illumination etc.) and these capabilities were used as shown below to answer some of the student’s questions.

Simulation Results: Predicted Air Flow

The predicted ‘age’ of the air at desk level is shown in Figure 2, with red being the oldest (i.e. most stagnant) and blue being fresh. In this case, there is a dead zone in the tea room (bottom right corner) even though the door is open. The air conditioning units help to circulate air in the small offices, but the tea room doesn’t have such a unit. This would mean that smells of cooking, or food waste in a bin, could accumulate more easily in the tea room.

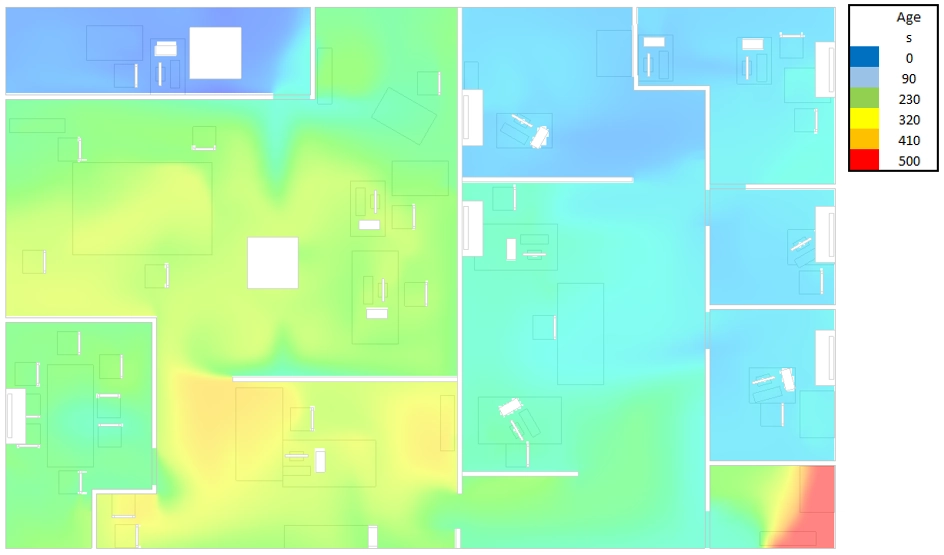

Computational Fluid Dynamic (CFD) results for the age-of-air at desk level

Figure 2: Desk level predicted ‘age’ of air

Simulation Results: Air Temperature

The predicted air temperature throughout the office was also calculated on a given day (Figure 3). Red is hottest and blue is coldest. The office with North-facing windows (top left corner) tends to bake in the sun, despite the air-conditioning unit. The small office rooms towards the other side of the office are colder. The small heat plumes (shown as red areas) around the computers are a consequence of the heat that they produce and add to the air.

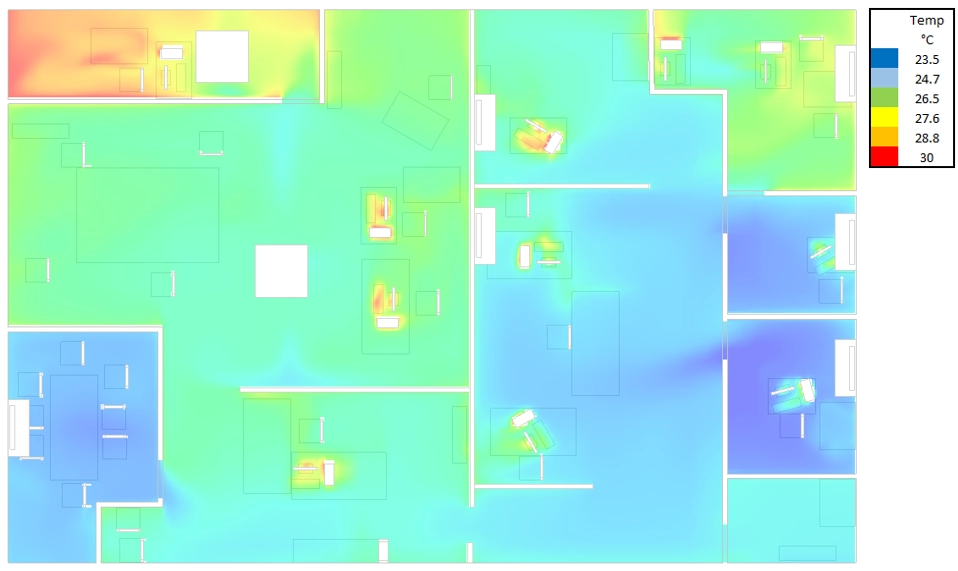

CFD results for the air temperature at desk level

Figure 3: Predicted temperature at desk level

Simulation Results: Air Speed

The predicted air speed throughout the office is shown in Figure 4. This knowledge can be useful to ensure that those who sit at desks will not be uncomfortable from cold or hot breezes blowing on them – or that papers don’t get blown off the desks. Red is the fastest speed, and dark blue is stationary air. Draughts above about 0.2 m/s are likely to cause some degree of discomfort.

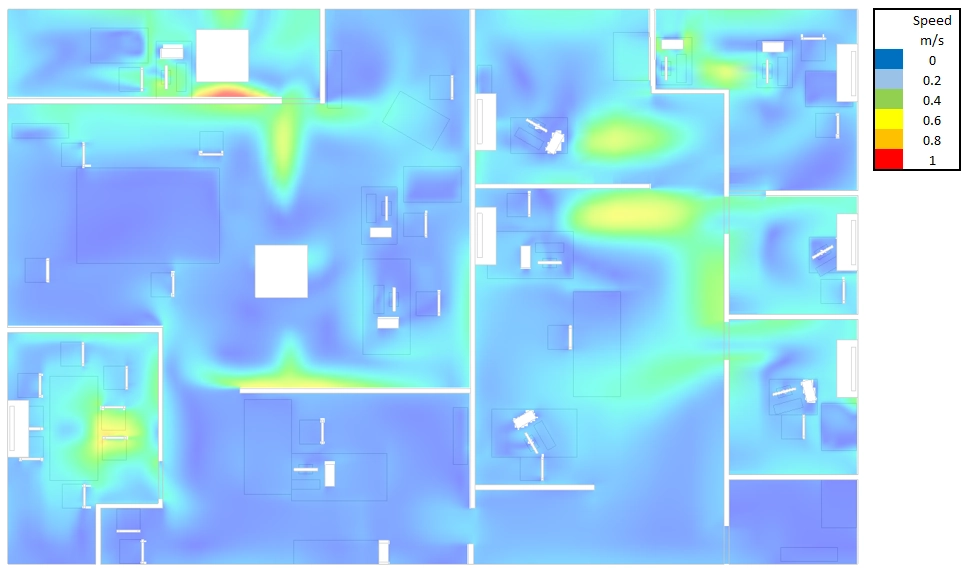

CFD results for the air flow at desk level

Figure 4: Predicted air flow speed at desk level

A similar calculation near the ceiling level (Figure 5) shows the air jets coming out of the air-conditioning units. Knowing where these blow can help to locate and aim them for maximum effect. If you have ever had a jet of hot or cold air blasting down your neck because you were the unfortunate person to sit in just the wrong place, you will appreciate how useful this could be!

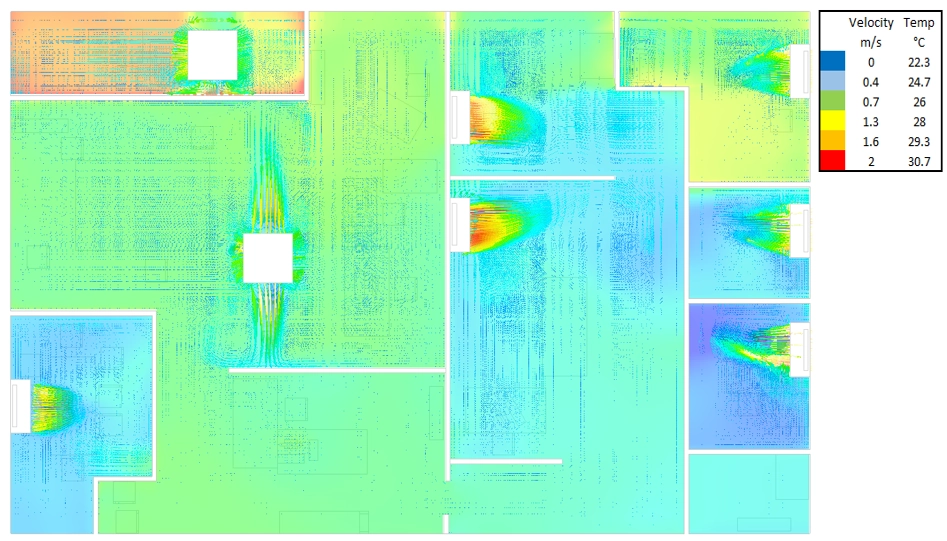

Combined CFD results for the air temperature and air velocities at desk level

Figure 5: Combination of predicted velocities and temperature near ceiling level

Simulation Results: Daylight

In the absence of the correct type of artificial lighting, plants must have sufficient natural light to grow. DesignBuilder also has the capability of calculating level of natural daylight that enters the office through windows. A sample is shown for this office in Figure 6. Red is the highest level, unsurprisingly near the North-facing windows. A knowledge of daylight levels is also useful for human comfort, appearance, and minimising electrical lighting requirements by good design. Desirable daylight levels for a home range from about 200 to 400 lux and those in an office from about 300 to 500 lux. There are many ways in which this tool can be used.

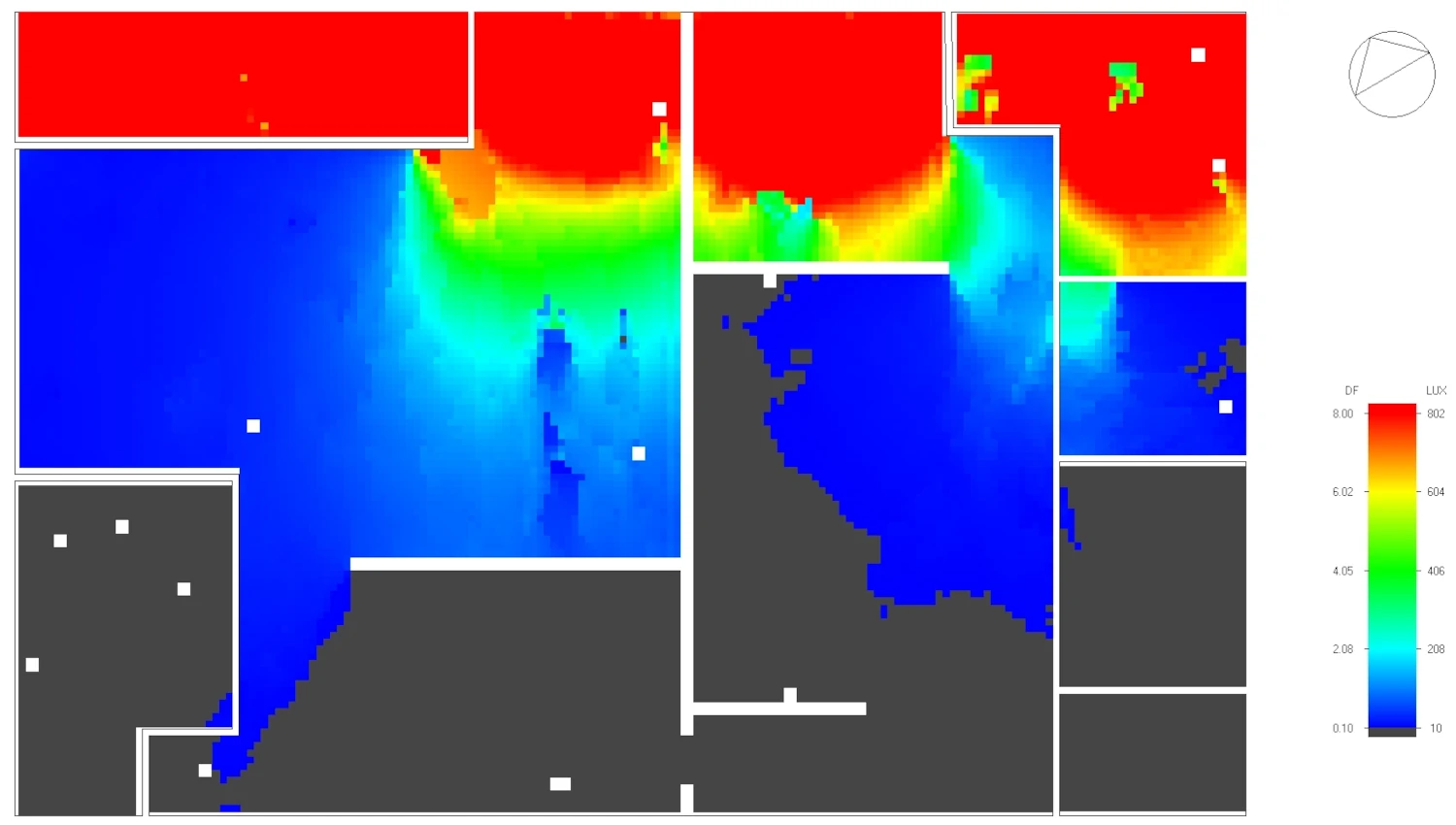

DesignBuilder daylight results for the office space

Figure 6: Daylight illuminance levels at desk level

Conclusion

This analysis is but one example of how DesignBuilder can be used to analyse buildings. With this software, we can identify:

  • Pros/cons in existing building structures.
  • Possible solutions to identified issues and/or
  • Recommendations for new designs.

Are you worried about local draughts, hot or cold spots, thermal comfort, air-conditioning sizing and daylight levels? You don’t have to make a blind guess – we can give you an informed answer!
